The Communication Manager sits between the Channel Manager and the rest of the server. Every message arriving from a channel plugin passes through it before reaching any consumer, and every reply from the application core must go through it before being dispatched back to a channel. It runs as an asyncio coroutine alongside the Channel Manager and HTTP Server inside the server process.

​
Responsibilities

Inbound routing — The Communication Manager is registered as the Channel Manager’s on_message callback. When a channel plugin delivers a message, the Communication Manager validates it, runs a permission check, and places it on the inbound queue for downstream consumers (currently the Agent Manager). Outbound routing — An internal worker continuously drains the outbound queue. For each message it runs a permission check, then calls ChannelManager.send_to_channel to dispatch it to the correct channel plugin. Permission enforcement — Both inbound and outbound messages pass through _check_permissions. This is currently a placeholder — raising a PermissionError silently drops the message with a warning log. Once the permission system is designed it will enforce channel-level ACLs, sender/recipient authorization, and rate limits. Message validation — Raw dict payloads from channel plugins are validated into UnifiedMessage before entering the queue. Malformed messages are dropped with a warning and never reach the agent.

​
Message flow

​
Inbound

A message travels from a channel plugin to the Agent Manager through the Communication Manager:
Inbound message flow from channel plugin to Agent Manager

​
Outbound

A reply travels from the application core back to a channel plugin:

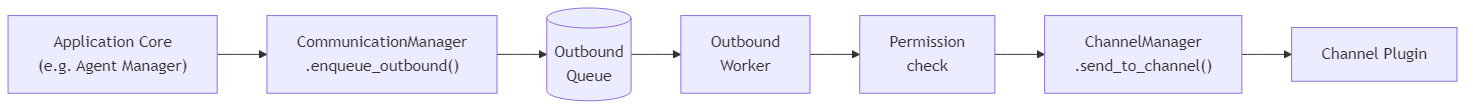

Outbound message flow from application core to channel plugin

​
UnifiedMessage

All messages in the system use UnifiedMessage — the canonical cross-channel format defined in hiro-channel-sdk. Every channel plugin translates its native format to and from this model. direction is always from the perspective of the server:
  • "inbound" — a message arriving from a user or external service
  • "outbound" — a reply to be sent to a user or external service
FieldTypeDescription
idstrAuto-generated UUID hex
channelstrChannel name (e.g. "telegram", "device")
directionstr"inbound" or "outbound"
sender_idstrOriginating user or service identifier
recipient_idstr | NoneTarget user or service identifier
content_typestrDefaults to "text"
bodystrMessage content
metadatadictChannel-specific extra data
timestampdatetimeUTC timestamp, auto-set on creation

​
Queues

Both queues are public asyncio.Queue[UnifiedMessage] instances. Downstream consumers read directly from inbound_queue; callers should always write to outbound_queue via enqueue_outbound() rather than putting to the queue directly. inbound_queue — Validated, permission-checked messages waiting to be consumed. The Agent Manager reads from this queue. outbound_queue — Messages waiting to be dispatched to a channel plugin. Written to via enqueue_outbound(); drained by the internal outbound worker.

​
Lifecycle

CommunicationManager is constructed before ChannelManager. After both exist, set_channel_manager() binds them together. The run() coroutine is then added to asyncio.gather so the outbound worker starts alongside the rest of the server.
comm = CommunicationManager()
channel_manager = ChannelManager(..., on_message=comm.receive)
comm.set_channel_manager(channel_manager)

await asyncio.gather(
    channel_manager.run(),
    comm.run(),
    http_server.run(),
)

​
