Channel plugins are the mechanism by which Hiro League connects to third-party messaging platforms — Telegram, WhatsApp, a custom mobile app, and anything else that can send and receive messages. Each plugin is a standalone Python package that runs as a subprocess managed by hirocli. It connects back to hirocli over a local WebSocket and speaks a JSON-RPC 2.0 protocol. The plugin is entirely responsible for translating between the unified Hiro League message format and whatever the third party requires.

​
Design goals

GoalHow it is achieved
Dependency isolationEach plugin is its own uv workspace member with its own virtualenv — no conflicts between e.g. python-telegram-bot and a WhatsApp SDK
Crash isolationA plugin crash does not bring down hirocli or other plugins
Independent updatesPlugins are versioned and updated separately from the core server
Uniform interfaceAll plugins speak the same JSON-RPC 2.0 dialect over a local WebSocket
Developer ergonomicshiro-channel-sdk provides the full contract; authoring a new plugin requires implementing 4 methods

​

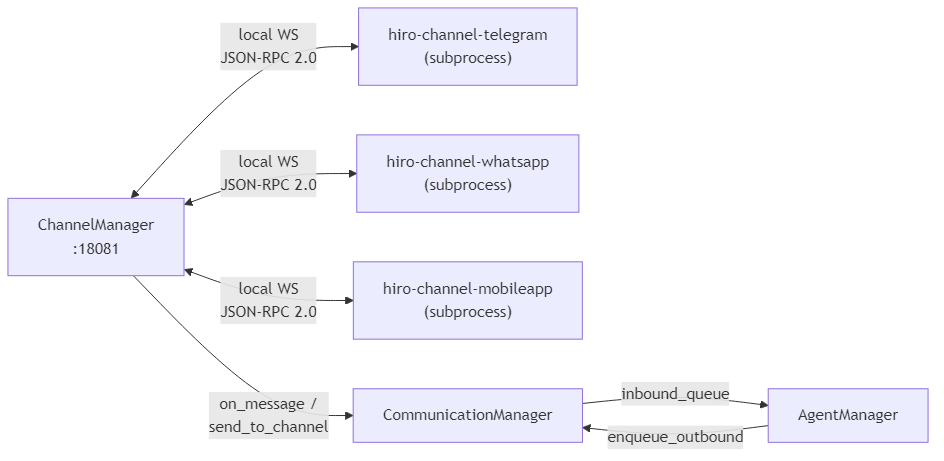

System overview

Channel plugin system overview showing ChannelManager connected to multiple plugin subprocesses and the CommunicationManager

​
Components

​
hiro-channel-sdk

The shared library that defines the contract between hirocli and every plugin. It is a uv workspace member (hiroserver/hiro-channel-sdk/) and a declared dependency of every channel package.
ModuleExportsPurpose
models.pyUnifiedMessage, ChannelInfo, RpcRequest, RpcResponsePydantic data models
base.pyChannelPluginAbstract base class plugins implement
rpc.pybuild_*, parse_messageJSON-RPC 2.0 wire-format helpers
transport.pyPluginTransportWS client that connects to hirocli and dispatches calls

​
ChannelManager

Lives in hirocli/channel_manager.py. On hirocli start it:
  1. Opens a WebSocket server on ws://127.0.0.1:<plugin_port> (default 18081).
  2. Reads ~/.hirocli/channels/*.json to discover enabled channels.
  3. Spawns one subprocess per enabled channel, appending --hiro-ws <url> and --log-dir <path>. Subprocess stdout/stderr are discarded — each plugin writes its own rotating log file to the log directory.
  4. Accepts incoming connections from plugin processes.
  5. Pushes the stored per-channel config (config field) to each plugin immediately after it registers.
  6. Routes inbound messages from plugins to the configured on_message callback.
  7. On shutdown: sends channel.stop to every plugin, waits 1 second, then terminates any remaining subprocesses.

​
CommunicationManager

The central message router between ChannelManager and the application core — handles inbound/outbound queuing and permission checks. See Communication Manager for full details.

​
AgentManager

The LLM worker that consumes text messages from the inbound queue, invokes a LangChain v1 create_agent instance, and pushes replies to the outbound queue. Per-conversation memory is maintained using LangGraph’s InMemorySaver checkpointer, keyed by channel:sender_id. See Agent Manager for full details.

​
Channel config files

Channel configuration is stored at ~/.hirocli/channels/<name>.json and managed via hirocli channel setup|enable|disable|remove.
{
  "name": "telegram",
  "enabled": true,
  "command": ["hiro-channel-telegram"],
  "config": {
    "bot_token": "123456:ABC-..."
  }
}

​
JSON-RPC 2.0 protocol

All messages are UTF-8 JSON over a single WebSocket connection per plugin. A notification has no "id" field (fire-and-forget). A request has an "id" and expects a response with the same "id".

​
Plugin → hirocli

MethodTypeParamsWhen
channel.registernotification{name, version, description}First frame after connect — mandatory
channel.receivenotificationUnifiedMessage (dict)Inbound message from third party
channel.eventnotification{event: str, data: any}Status changes, delivery receipts, errors

​
hirocli → plugin

MethodTypeParamsPurpose
channel.sendnotificationUnifiedMessage (dict)Send a message out through this channel
channel.configurenotification{config: {…}}Push credentials and settings
channel.statusrequest—Health probe — expects {name, version, status}
channel.stopnotification—Graceful shutdown signal

​

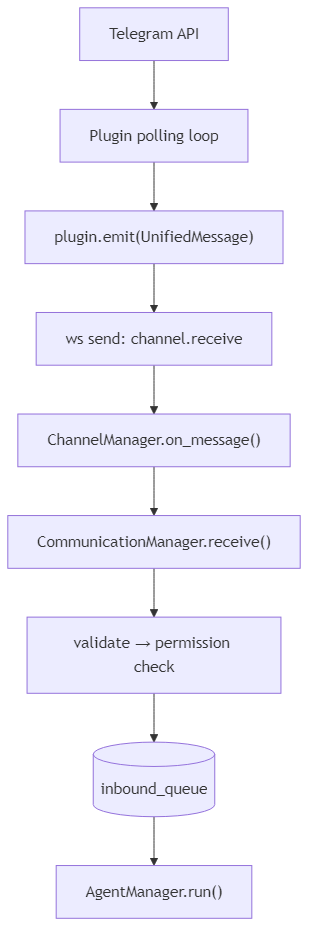

Inbound message flow

Inbound message flow from Telegram API through the plugin to AgentManager

​

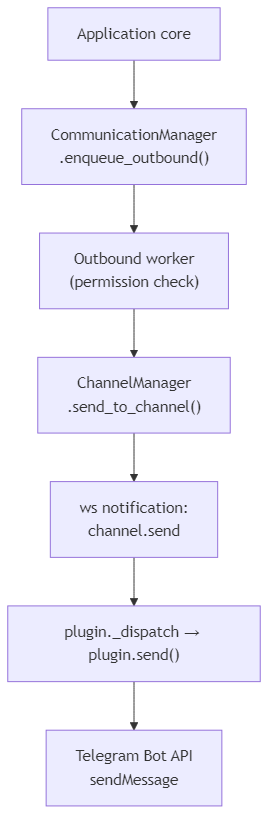

Outbound message flow

Outbound message flow from application core through the plugin to the Telegram API

​
UnifiedMessage format

All messages in the system use UnifiedMessage — the canonical cross-channel format defined in hiro-channel-sdk. direction is always from hirocli’s perspective:
  • "inbound" — arriving from the third party (user sent something)
  • "outbound" — to be sent to the third party
{
  "id": "a3f9c2d1...",
  "channel": "telegram",
  "direction": "inbound",
  "sender_id": "123456789",
  "recipient_id": null,
  "content_type": "text",
  "body": "Hello!",
  "metadata": {
    "chat_id": 123456789,
    "message_id": 42
  },
  "timestamp": "2026-02-27T10:00:00+00:00"
}
FieldTypeNotes
idstrAuto-generated UUID hex
channelstrPlugin name, e.g. "telegram"
directionstr"inbound" or "outbound"
sender_idstrChannel-native user identifier
recipient_idstr | NoneChannel-native target identifier
content_typestr"text" | "image" | "audio" | "video" | "location" | "command" | "file"
bodystrText content or caption
metadatadictChannel-specific extras — free-form
timestampdatetimeUTC, auto-generated

​

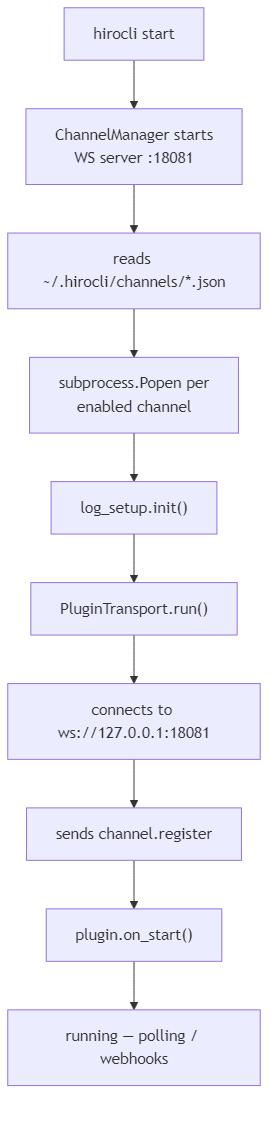

Plugin lifecycle

Plugin lifecycle from hirocli start through plugin registration to running state
On hirocli stop: the stop event is set, channel.stop is sent to each plugin, hirocli waits 1 second, then terminates any remaining subprocesses.

​
uv workspace layout

hiroserver/
├── pyproject.toml              # workspace root: members = [..., "hiro-channel-sdk", "channels/*"]
├── hiro-channel-sdk/            # shared SDK (workspace member)
└── channels/
    ├── hiro-channel-echo/       # echo test plugin (workspace member)
    ├── hiro-channel-telegram/   # (future)
    └── hiro-channel-whatsapp/   # (future)
Each channel package declares hiro-channel-sdk as a workspace dependency, giving it an isolated virtualenv while sharing the workspace’s common resolved lockfile.

​
